Wednesday, December 30, 2009

Copying MTMini Multi Touch

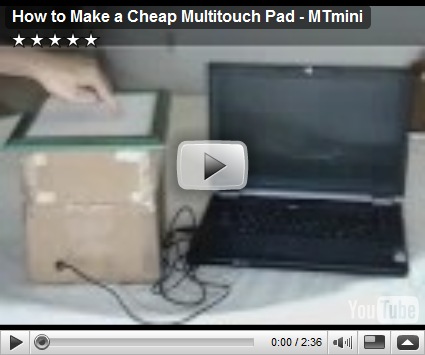

This post is a chronicle of how I built a cheap multi-touch by consulting Howto guide of MTMini. Just for fun.



A. Download and Install Required Applications for MTMini (Dec. 23, 2009)




  • Unzip the file at a desired location. I unzipped it at d:\download.
  • Go to “d:\download\CCV-1.2-win-bin\CCV-1.2-win-bin\Community Core Vision\” and run “Community Core Vision.exe”.
  • At the first time, CCV runs with a default video file.



B. Go and Buy Materials (Dec. 26, 2009)

Cardboard box, Webcam (Microsoft LifeCam VX-500), Acrylic Plate and Sheets of Paper.




C. Start Building MTMini (Dec. 28, 2009)

  • Build Start: 11:52 AM

MTMini Materials

028

029

MTMini

  • Adjust Settings of Community Core Vision - Check Use Camera, Track Dark Blobs, and Flip Horizontal

Community Core Vision

  • Test – OK, it works

MTMini Test

  • Build Completed: 12:40 PM (Total Time Elapsed: 48 minutes)
